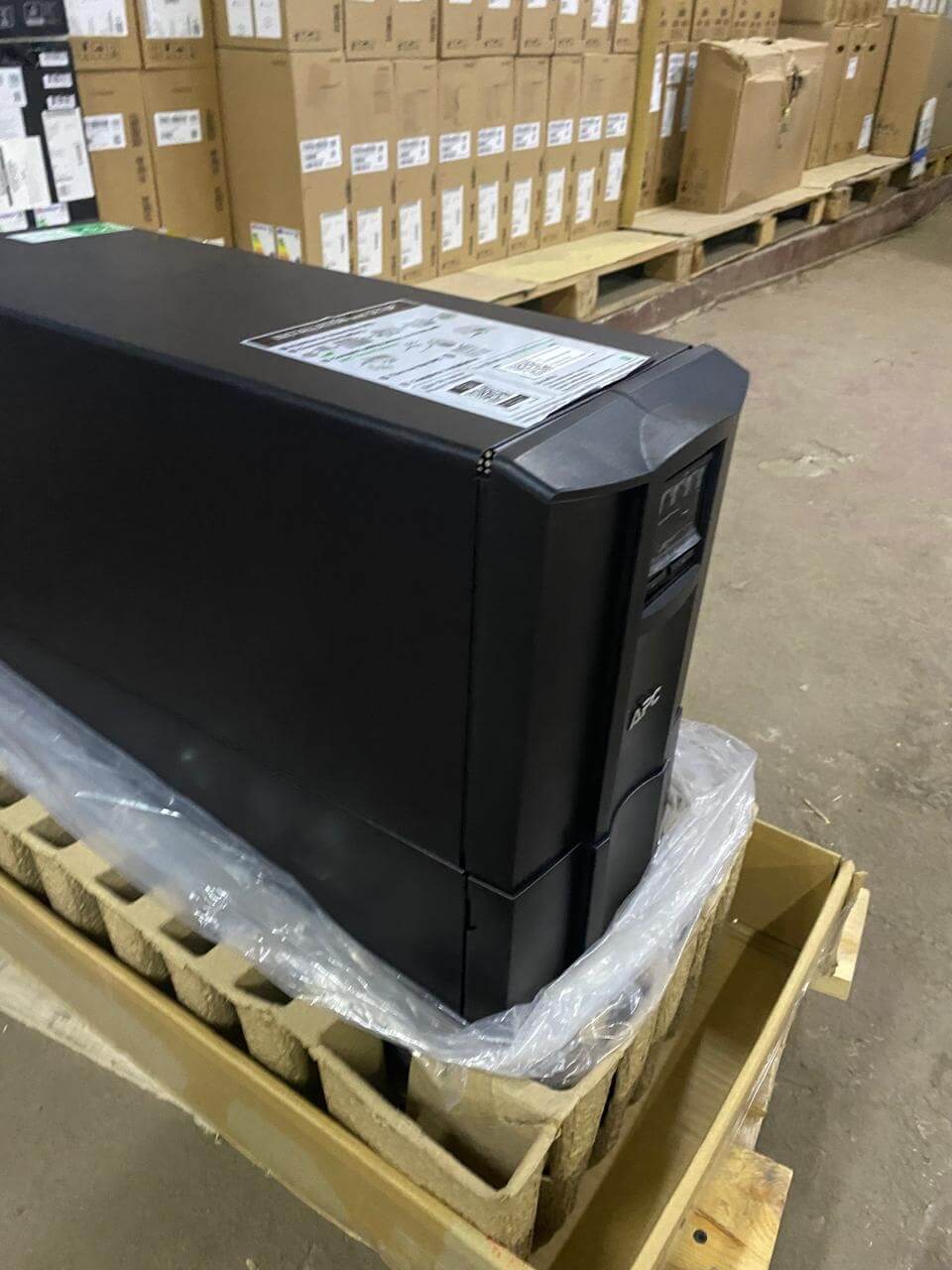

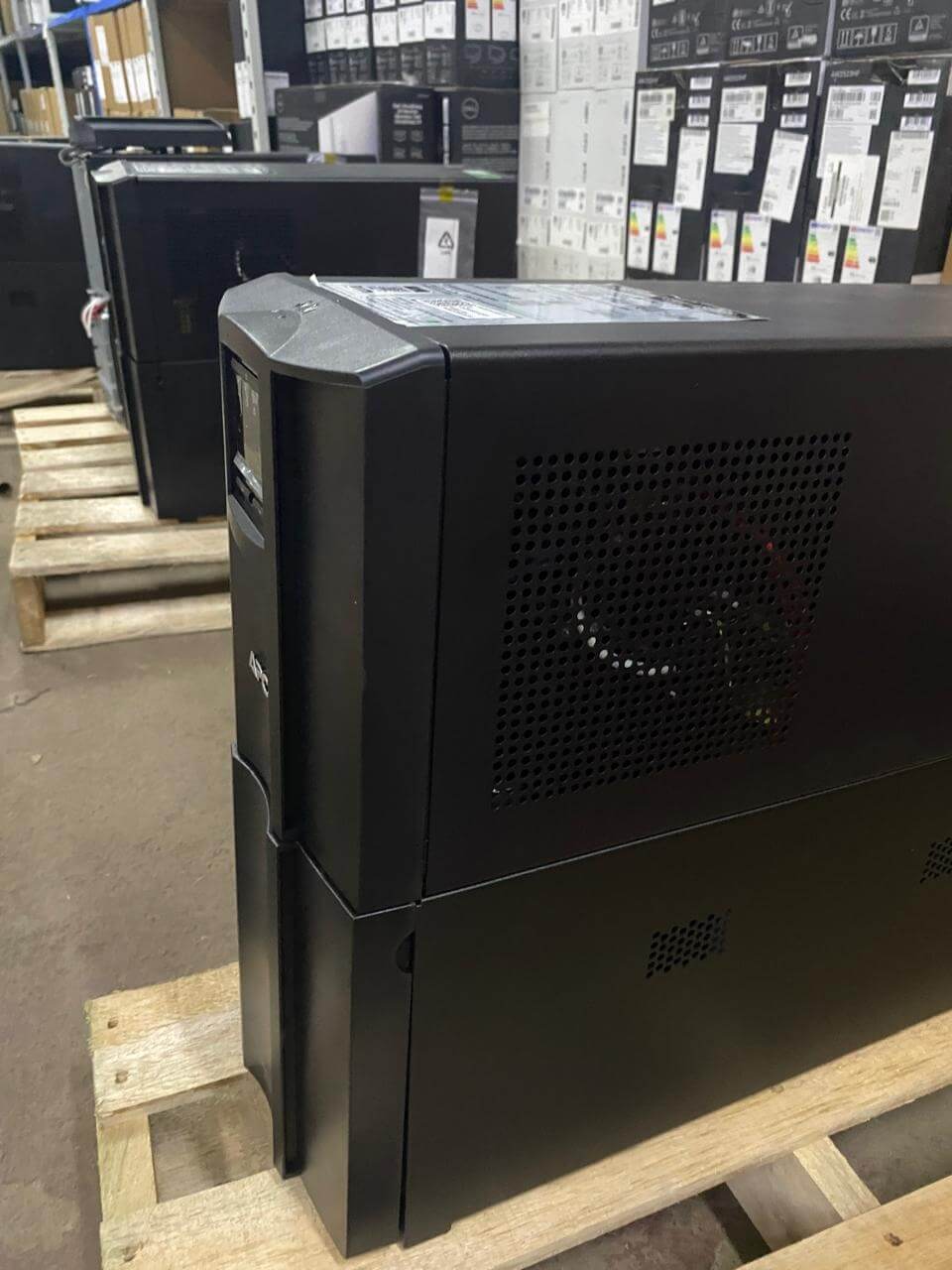

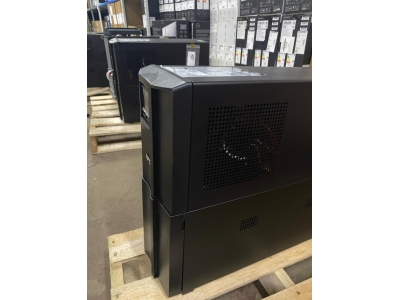

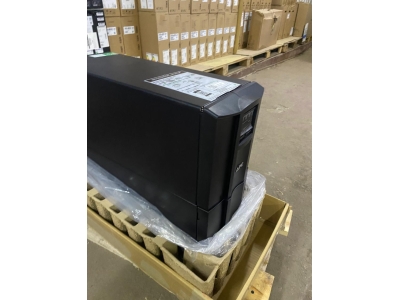

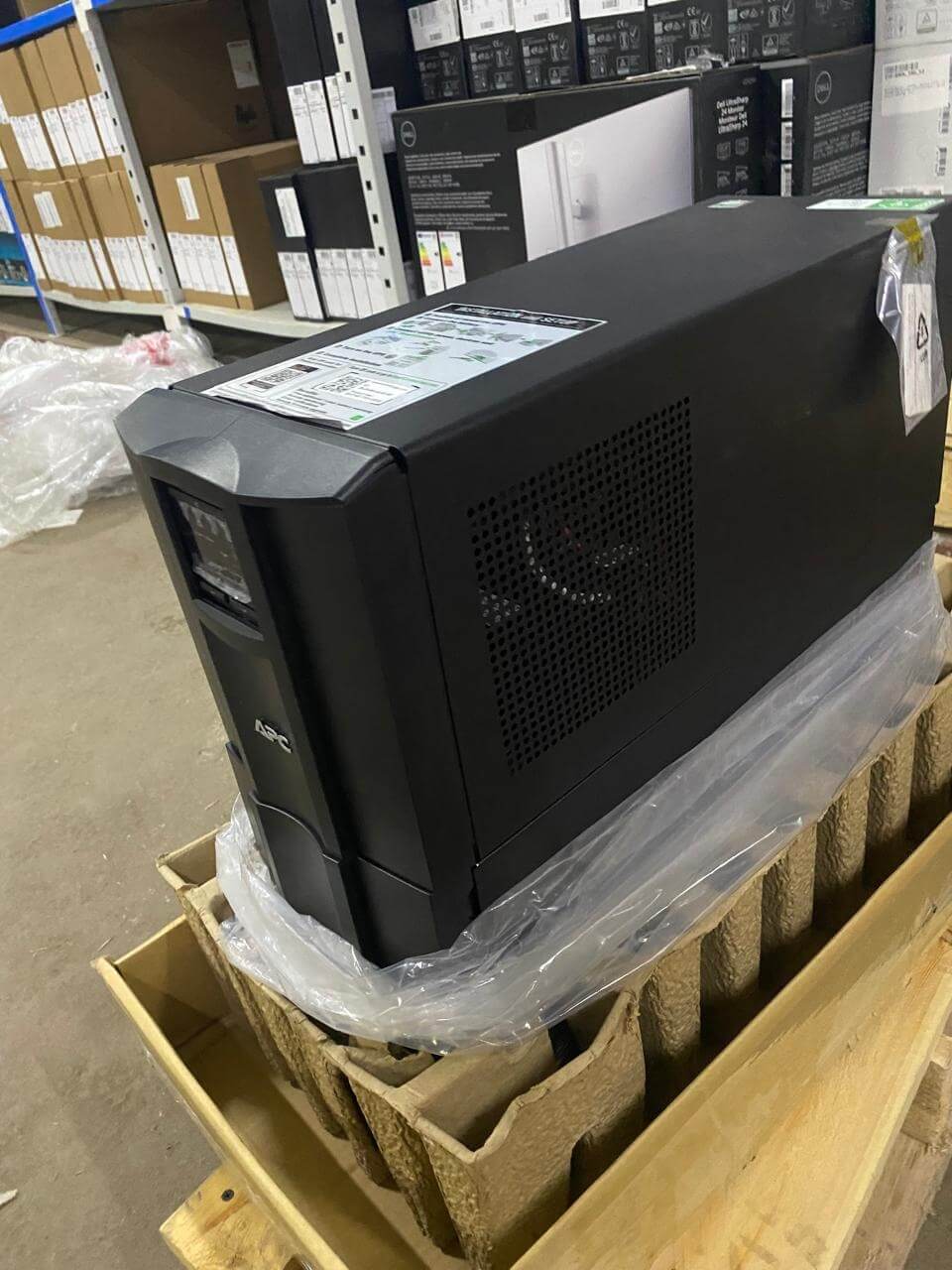

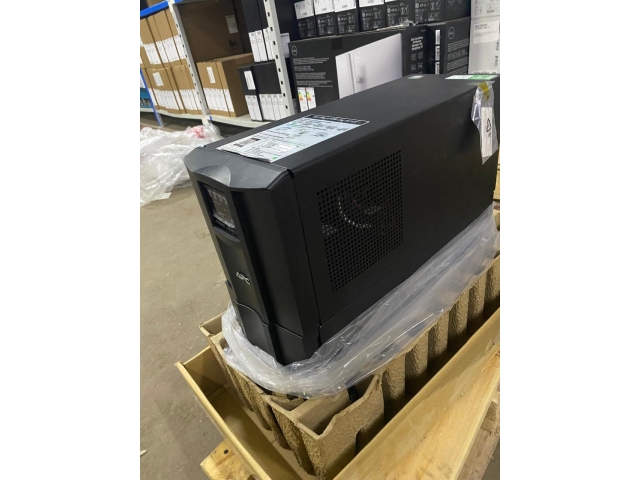

APC Smart-UPS 3000VA LCD 230V SmartConnect

Overview Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Lead time Usually in Stock Main Run time for load 2700 W Min-max: 270-2700 W 5min 4s Max. Capacity Used 100% Product or component type Uninterruptible power supply (UPS) Complementary Communication port type SmartConnect Ethernet port SmartSlot Software package SmartConnect software for remote power monitoring feature availability varies by terms of use Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Additional information Configurable for 220 : 230 or 240 nominal output Extended runtime 1 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 3 h Number of battery replacement quantity 1 Battery life 3…5 year(s) Replacement battery RBC55 Battery charger power 271 W rated General Provided equipment USB cable Number of power module 0 Number of power module filled slots 0 Number of power module free slots 0 product web sub-family Cloud-enabled monitoring Redundant No Physical Number of rack unit 0U Number of cables 1 Color Black Height 435 mm Width 197 mm Depth 544 mm Net weight 52.5 kg Mounting location Front Mounting preference No preference Mounting mode Not rack-mountable Two post mountable 0 USB compatible Yes Input Main Input Voltage 230 V Other Input Voltage 220 V 240 V Input Connection Type IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British Input voltage limits 151...302 V adjustable 160...286 V Network frequency 50/60 Hz +/- 3 Hz auto-sensing Output Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 2700 W Rated power in VA 3000 VA output connection type 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 Harmonic distortion Less than 5% Maximum configurable power in VA 3000 VA Maximum configurable power in W 2700 W Transfer time 6 ms typical : 10 ms maximum UPS type Line interactive Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Conformance Product certifications CE EAC RCM VDE UK PSTI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 53 dBA Heat dissipation 375 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0…15240 m Relative humidity 0…95% Storage Relative Humidity 0…95% Communications & Management Control panel Multifunction LCD status and control console Emergency power off Yes Free slots 1 Communication port support SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Surge Protection and Filtering Surge energy rate 365 J Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 69.901 cm Package 1 Width 38.100 cm Package 1 Length 76.200 cm Package 1 Weight 63.548 kg Contractual warranty Warranty 3 years repair or replacement (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
